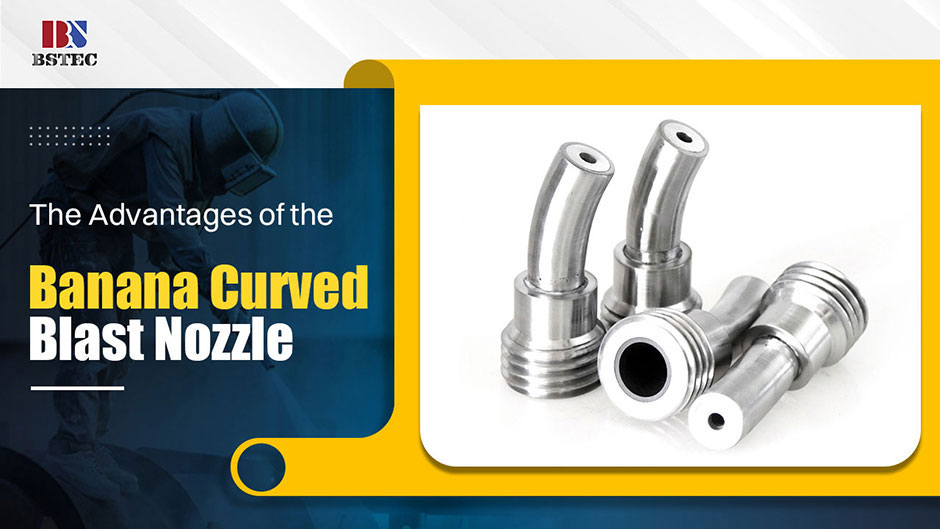

The Advantages of the Banana Curved Blast Nozzle

Within the abrasive blasting industry, where surface geometry and operator capability define the limits of a job, specialized tools often make the difference between possible and impossible. The banana curved blast nozzle is a prime example of such innovation—a tool born from the necessity to confront uniquely challenging physical and ergonomic constraints. Unlike standard straight or venturi nozzles, its distinctive, sweeping curved shape is not a stylistic choice but a profound functional adaptation. This nozzle excels in scenarios where conventional tools fail, offering solutions that transcend mere cleaning to address fundamental issues of access, human factors, and controlled efficiency. The advantages of the banana curved nozzle are both stark and specialized, centering on three transformative areas: revolutionary ergonomics that combat operator fatigue, unparalleled access to extreme low-clearance environments, and the delivery of powerful, controlled blasting where no other tool can effectively reach.

1. Revolutionary Ergonomic Design: A Solution for Operator Health and Endurance
The most immediate benefit of the banana nozzle is its radical improvement in operator ergonomics, a critical factor often overlooked in blasting productivity and safety. Traditional blasting of large, low-lying horizontal surfaces—such as ship decks, tank floors, or concrete slabs—requires operators to bend severely at the waist or even work in a crouched or kneeling position for extended periods. This posture places immense strain on the lower back, shoulders, and wrists, leading to rapid fatigue, decreased focus, and a high risk of long-term musculoskeletal injury.

The banana nozzle’s curved design fundamentally alters this dynamic. It allows the operator to maintain a significantly more upright and natural standing posture while directing the abrasive stream horizontally along the ground. The blast hose connects at the top of the curve, flowing downward and away from the operator's body, reducing weight and drag at the point of control. This ergonomic advantage translates directly into reduced physical fatigue, increased comfort during long shifts, and enhanced overall safety. By preserving operator stamina and well-being, the banana nozzle ensures consistent work quality is maintained over time, not just in short, intense bursts.

2. Unparalleled Access to Extreme Low-Clearance and Obstructed Areas
The banana nozzle’s primary technical mission is to solve access problems that are insurmountable for straight tools. In industries like shipbuilding, marine maintenance, and tank fabrication, countless surfaces are located beneath pipes, girders, ducting, or within double-bottom hulls where clearance may be only a few inches. A straight or venturi nozzle cannot be angled effectively in these spaces; it either hits the obstruction above or requires the operator to assume an untenable, prone position.

The forward-sweeping curve of the banana nozzle is engineered specifically for this challenge. It acts as an integral extension, reaching under and around obstacles that would block any other nozzle type. This enables effective blast cleaning in areas previously considered "no-go" zones without disassembly. Whether it’s cleaning tank bottoms where support beams run overhead, scouring the underside of low-slung machinery, or preparing the deck behind structural risers, the banana nozzle provides a direct solution. This capability not only improves the thoroughness of surface preparation but also dramatically reduces the non-productive labor hours associated with gaining access through alternative means.

3. Powerful and Controlled Performance in Compromised Positions
A critical distinction of the high-quality banana curved nozzle is that it does not sacrifice blasting performance for its unique shape. The curved body typically leads to a standard venturi jet assembly at its exit point. This means it retains the efficiency of the venturi principle—creating a focused, high-velocity abrasive stream that ensures effective cleaning and optimal abrasive usage. The curvature simply directs this powerful stream into the required plane of work.

This results in a unique combination of power, precision, and profile control in situations where control is otherwise lost. When blasting a large, low-clearance floor, for example, the operator can guide the nozzle in a smooth, walking pattern without the constant physical struggle of bending. The curved design provides inherent stability and a natural guiding angle, making it easier to maintain a consistent stand-off distance and travel speed. Consequently, the nozzle delivers a uniform anchor profile and clean surface finish, even in the most physically demanding applications, meeting the strict specifications required for subsequent coating.

Conclusion
The banana curved blast nozzle is the definitive tool for a specific class of problems. Its advantages are not about being a general-purpose instrument but about being the singularly effective solution where all others fail. By championing operator ergonomics, it protects a company's most valuable asset: its workforce. Conquering extreme low-clearance environments, it unlocks the ability to complete critical preparation work that would otherwise be postponed or done inadequately. And by delivering venturi-grade performance in these compromised positions, it ensures the job is done not just to completion, but to a high-quality standard. For shipyards, tank farms, and heavy industrial facilities, the banana nozzle is more than an advantage; it is an essential component of a capable, efficient, and humane blasting operation, turning some of the most daunting tasks into manageable, routine work.
