A Guide to Choosing Between Single vs. Double Inlet Venturi Nozzles
In the high-stakes world of abrasive blasting, efficiency isn't just a goal—it's the bottom line. Every minute of operation consumes abrasive media, energy, and labor. One of the most critical, yet often overlooked, decisions that directly impacts your project's speed, cost, and outcome is the choice of nozzle. Specifically, the choice between a Single Inlet and a Double Inlet Venturi Nozzle.
While both are workhorses in surface preparation and cleaning, understanding their distinct advantages is key to unlocking peak performance. Let's dive into the mechanics, compare their strengths, and guide you to the perfect match for your application, highlighting the professional-grade solutions from BSTEC.
The Core Principle: How Airflow Defines Performance
At the heart of any Venturi nozzle is the principle of using compressed air to create a high-velocity stream that accelerates abrasive media. The difference lies in how the air is introduced.
• Single Inlet Venturi Nozzles: These feature one primary air inlet. The air enters, creates a vacuum to draw in abrasive from the pot, and accelerates it through the converging-diverging bore. They are known for producing a wide, consistent blast pattern, excellent for general-purpose cleaning and achieving uniform surface profiles over larger areas.
• Double Inlet Venturi Nozzles: As the name suggests, these incorporate a secondary air inlet. This additional airflow surrounds and further accelerates the abrasive stream already created by the primary inlet. The result is a significantly higher particle velocity, leading to more aggressive cleaning power and improved efficiency on tough coatings and hard substrates.
Head-to-Head Comparison: Choosing Your Champion
| Feature | Single Inlet Venturi Nozzle | Double Inlet Venturi Nozzle |
| Primary Advantage | Wide, uniform blast pattern for consistent coverage. | Higher abrasive velocity for faster, more aggressive cleaning. |
| Efficiency Focus | Abrasive Efficiency & Coverage: Excellent media distribution, often leading to less media waste on suitable applications. | Speed & Power Efficiency: Reduces blasting time on challenging surfaces, saving labor and operational costs. |
| Best For | Large surface areas, uniform profile creation (e.g., for painting), delicate surface finishing, and general maintenance. | Heavy-duty rust and coating removal, thick mill scale, concrete texturing, and any project where time is critical. |
| Air Consumption | Typically slightly lower. | May require higher CFM due to the secondary inlet, but the productivity gain usually justifies it. |
| Consideration | Might require more passes on extremely tough contaminants. | The focused, high-energy stream may require more operator skill to avoid over-profiling. |
BSTEC's Engineered Solutions: Precision-Built for Performance

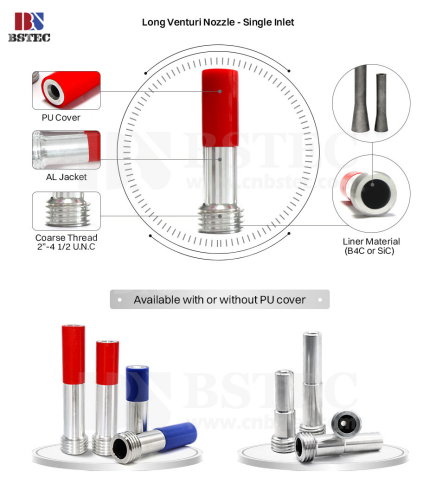

At BSTEC, we engineer our nozzles to deliver maximum durability and performance, regardless of your choice. Our Long Venturi Nozzles – available in both Single and Double Inlet configurations – are built to withstand the most demanding environments.
Shared Superior Features of BSTEC Venturi Nozzles:
• Lightweight & Durable Aluminum Jacket with Rubber Cover: Reduces operator fatigue while protecting against impacts.
• Industrial-Grade Coarse Thread (2"-4 1/2 U.N.C): Ensures a secure, easy connection to standard blast equipment.
• Premium Wear-Resistant Liners (B4C & SiC): Our Boron Carbide and Silicon Carbide liners offer exceptional hardness and corrosion resistance, directly translating to a longer service life and lower replacement costs.
• Proven Versatility: From surface preparation and industrial cleaning to precision decorative work, our nozzles are trusted across industries.
Making the Right Choice with BSTEC:
Choose our Single Inlet Venturi Nozzle (e.g., Model USVC Series) when your priority is achieving a flawless, even profile on large steel structures before coating, for cleaning composite surfaces, or for controlled texturing in manufacturing. Its wide pattern gets the job done uniformly and effectively.
