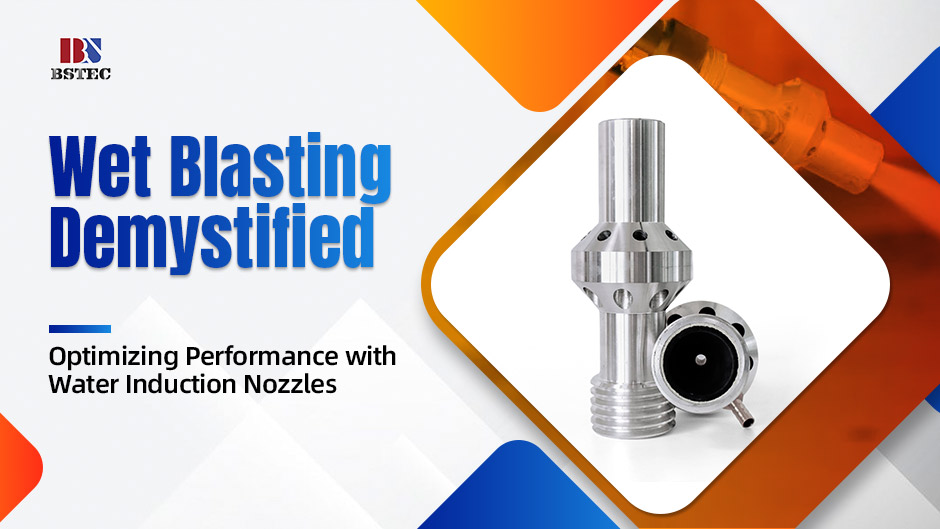

For decades, abrasive blasting has been synonymous with clouds of dust, containment challenges, and respiratory concerns. Enter wet abrasive blasting—a sophisticated evolution that tames the dust while unlocking a new realm of precision and surface treatment possibilities. At the heart of this transformative process lies a critical component: the Water Induction Nozzle. Understanding how it works and selecting the right one is key to unlocking the full potential of wet blasting.

This guide cuts through the mist to explain the advantages of wet blasting, demystify the water induction nozzle, and show you how BSTEC's engineered solutions can optimize your performance for cleaner, more controlled, and versatile surface preparation.

1. Why Go Wet? The Compelling Advantages Over Dry Blasting

Wet abrasive blasting ingeniously combines the power of water jetting with abrasive projection. By introducing a controlled stream of water into the abrasive airstream, it achieves results that dry blasting alone cannot match.

• Dust Suppression (The Primary Benefit): Water encapsulates abrasive particles and knocks down airborne dust at the source. This creates a vastly cleaner work environment, crucial for indoor facilities, sensitive locations, and meeting stringent health & safety regulations. It also minimizes containment needs and cleanup time.

• Reduced Static & Heat: The water eliminates the static electricity generated by dry abrasive impact, which can be a safety hazard and cause abrasive to cling to surfaces. It also cools the workpiece and nozzle, preventing heat distortion on delicate substrates.

•Enhanced Surface Profile Control: The water cushioning effect can produce a finer, more consistent anchor profile, which is ideal for critical coating adhesion on materials like steel or concrete.

•Versatility in Media & Applications: It allows the effective use of finer or more delicate media (like crushed glass) that might dissipate in dry blasting, opening doors for cleaning, etching, and peening without embedded contamination.

2. The Heart of the System: How a Water Induction Nozzle Works

A Water Induction Nozzle is far more than a standard nozzle with a water line attached. It is a precision-engineered tool designed to atomize and integrate water seamlessly into the high-speed abrasive stream.

The typical design features a secondary inlet or port for water delivery. As compressed air and abrasive accelerate through the main Venturi section, water is injected under pressure. The nozzle's internal geometry is critical—it ensures the water is sheared into a fine mist and uniformly mixed with the abrasives before exiting the orifice. This creates a coherent, dust-suppressed slurry jet that delivers impact while controlling the particulates.

Key Takeaway: The quality of mixing dictates performance. A poorly designed nozzle will result in water and abrasive separating, leading to inconsistent blasting, wasted water, and inadequate dust control.

3. Choosing the Right Nozzle: Key Specifications from BSTEC

BSTEC offers a range of high-performance Water Induction Nozzles built for reliability and ease of use. When selecting yours, consider these core specs based on our product line:

•Liner Material – B4C (Boron Carbide): BSTEC nozzles feature liners made of Boron Carbide, one of the hardest man-made materials available. This ensures exceptional wear resistance, providing a longer service life than standard ceramic or tungsten carbide liners in wet blasting conditions, maximizing your return on investment.

• Thread Type – Coarse (2"-4 1/2 UNC) or Fine (1-1/4" NPSM): This is about compatibility with your blast machine.

• Coarse Thread: The industry-standard "contractor thread." It allows for easier and quicker installation and removal, ideal for high-use environments or when changing nozzles frequently. (Model: UWIC series).

• Fine Thread: Provides a tighter, more secure seal upon connection. This can be beneficial for ensuring no leaks at the junction, especially important in maintaining precise water-to-air ratios.

• Bore Diameter (6mm to 12mm): Available in various sizes (e.g., UWIC-6 to UWIC-12), the bore dictates the abrasive flow rate and pattern density. Smaller bores (6-8mm) offer finer control for detailed work, while larger bores (10-12mm) provide greater coverage for large-scale cleaning and preparation.

• Dual-Functionality (A Notable BSTEC Feature): Our nozzles are designed to be used both wet AND dry. Simply by closing the water supply, the nozzle operates as a conventional high-quality Venturi blasting nozzle. This versatility means one nozzle can handle multiple job types, reducing inventory costs and downtime for changeovers.

4. Optimizing Performance: Practical Tips for Wet Blasting with BSTEC Nozzles

To get the most out of your BSTEC Water Induction Nozzle, follow these guidelines:

• Balance Air and Water Pressure: Start with manufacturer recommendations. The goal is a fully atomized mist. Too little water creates dust; too much water dilutes cutting power and creates runoff. The fully adjustable feature of BSTEC nozzles allows you to find the perfect balance for your specific media and surface.

• Select the Appropriate Abrasive: Softer, finer abrasives like crushed glass, garnet, or certain slag work excellently with wet blasting. Avoid absorbent materials that can clog the system.

• Mind the Environment: While dust is minimized, you are now managing slurry. Plan for containment and filtration/recycling of spent abrasive and water to align with environmental regulations.

• Regular Inspection & Maintenance: Check the B4C liner for wear. Even with its superior durability, eventual wear will affect the spray pattern and efficiency. Keeping spare nozzles (like BSTEC's UWIC series) on hand ensures uninterrupted productivity.

Conclusion: Embrace a Cleaner, More Capable Blasting Future

Wet abrasive blasting is no longer a niche technique; it's a smart, responsible, and highly effective solution for modern surface preparation challenges. By investing in a precisely engineered Water Induction Nozzle from BSTEC, you're not just buying a tool—you're gaining a performance-optimizing asset. You achieve superior dust control, unlock new applications, extend media life, and protect both operator health and the surrounding environment.

Ready to transform your blasting process? Discover the precision, durability, and dual functionality of BSTEC Water Induction Nozzles.

Visit www.cnbstec.com today to explore the full UWIC series specifications and find the perfect nozzle to bring clarity and control to your next project.

BSTEC – Engineering Clarity in Every Blast.
